Vehicle Rear Side

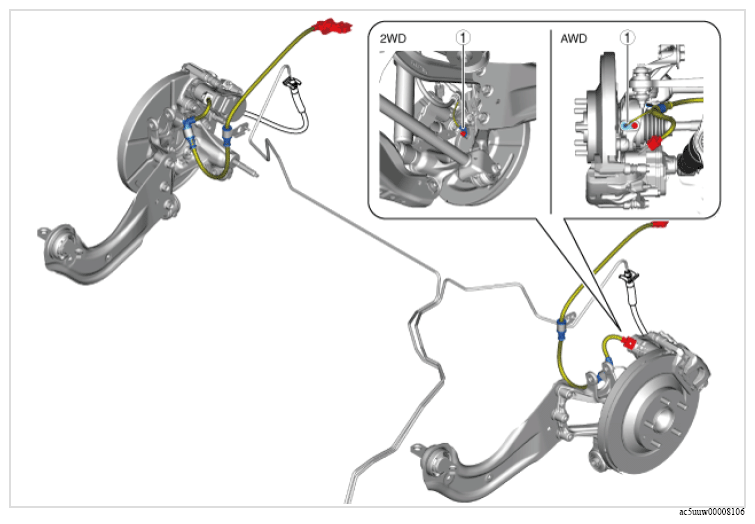

G13112120Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear ABS wheel-speed sensor
(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION (2WD) .)
(See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION (AWD) .)
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION (2WD) .)
(See REAR ABS WHEEL-SPEED SENSOR INSPECTION (AWD) .)
