Section 172 (On-Board Diagnostic - AWD System)
>>
Electronic AWD Control System Wiring Diagram [Electronic AWD Control System]
Electronic AWD Control System Wiring Diagram [Electronic AWD Control System]
WARNING:
This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

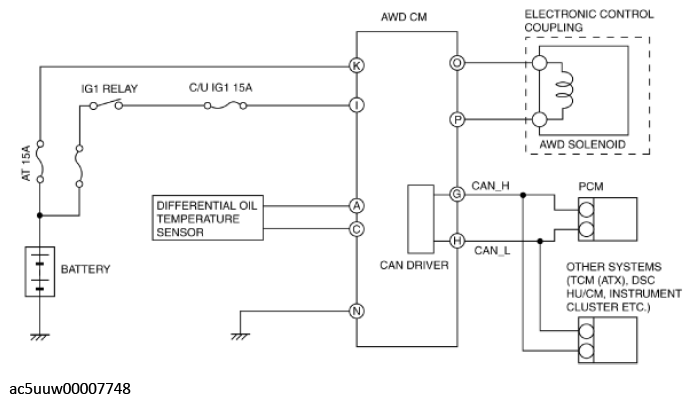

Fig 1: Electronic AWD Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
