Front Brake Caliper Disassembly/Assembly (With Single Piston Floating Caliper): Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

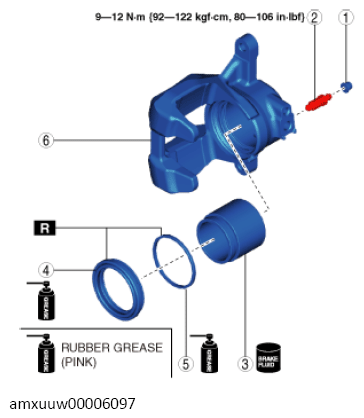

Fig 1: Front Brake Caliper Components With Torque Specification (With Single Piston Floating Caliper)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bleeder cap
2	Bleeder screw
3	Piston (See Piston Disassembly Note .)
4	Dust seal
5	Piston seal
6	Caliper body

Assemble in the reverse order of removal.
