Vehicle Front Side

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

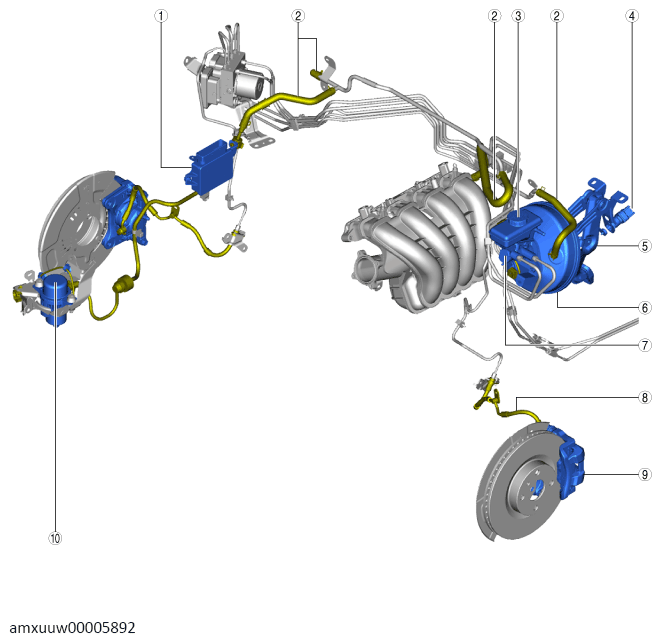

COMPONENT DESCRIPTION

1	EVP control unit (See EVP CONTROL UNIT INSPECTION .) (See EVP CONTROL UNIT REMOVAL/INSTALLATION .)
2	Vacuum line (See VACUUM LINE INSPECTION .) (See VACUUM HOSE REMOVAL/INSTALLATION .)
3	Brake fluid (See BRAKE FLUID INSPECTION .) (See BRAKE FLUID AIR BLEEDING .)
4	Brake switch (See BRAKE SWITCH INSPECTION .)
5	Brake pedal (See BRAKE PEDAL INSPECTION .) (See BRAKE PEDAL REMOVAL/INSTALLATION .)
6	Power brake unit (See POWER BRAKE UNIT INSPECTION .) (See POWER BRAKE UNIT REMOVAL/INSTALLATION .) (See VACUUM SENSOR 1 INSPECTION .)
7	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION .) (See BRAKE FLUID LEVEL SENSOR INSPECTION .)
8	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER] .) (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER] .)
9	Front brake (disc) (See FRONT BRAKE INSPECTION .) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER] .) (See FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER] .) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER] .) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER] .) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER] .) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER] .) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY (WITH SINGLE PISTON FLOATING CALIPER) .) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY (WITH 4-POT OPPOSED PISTON CALIPER) .) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER] .)
10	Electric vacuum pump (See ELECTRIC VACUUM PUMP INSPECTION .) (See ELECTRIC VACUUM PUMP REMOVAL/INSTALLATION .)
