Lighting Systems Location Index: Exterior

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

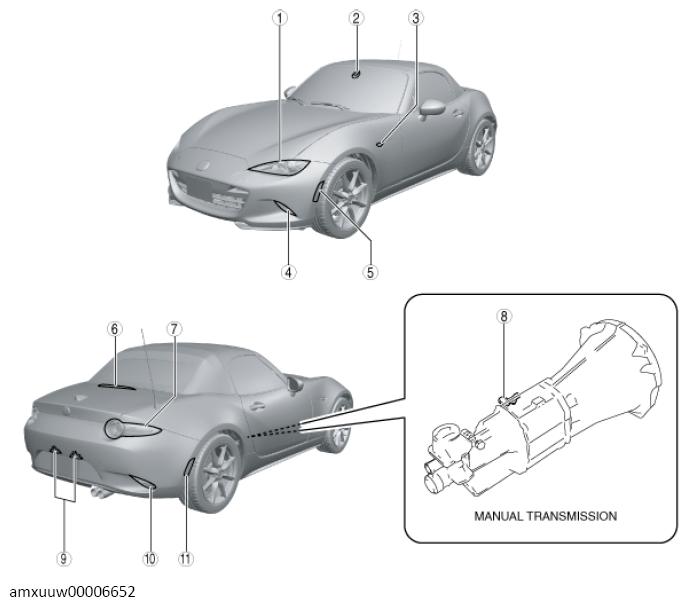

COMPONENT DESCRIPTION

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .) (See HEADLIGHT BULB REMOVAL/INSTALLATION .) (See HEADLIGHT AIMING .) (See PARKING LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
2	Auto light sensor (with auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION .)
3	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
4	Daytime running light (DRL) (See DAYTIME RUNNING LIGHT (DRL) REMOVAL/INSTALLATION .) (See DAYTIME RUNNING LIGHT (DRL) INSPECTION [LED TYPE] .) (See DAYTIME RUNNING LIGHT (DRL) BULB REMOVAL/INSTALLATION .)
5	Front side marker light (See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION .) (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
6	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
7	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .) (See BRAKE LIGHT/TAILLIGHT BULB REMOVAL/INSTALLATION .) (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION .) (See REAR COMBINATION LIGHT SHORT-CORD INSPECTION .)
8	Back-up light switch (See BACK-UP LIGHT SWITCH INSPECTION .)
9	License plate lights (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT SHORT-CORD REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT SHORT-CORD INSPECTION .)
10	Back-up light (See BACK-UP LIGHT REMOVAL/INSTALLATION .) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .)
11	Rear side marker light (See REAR SIDE MARKER LIGHT REMOVAL/INSTALLATION .) (See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)
