INFO button

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistance between steering switch terminals 3D and 3L under the following conditions.

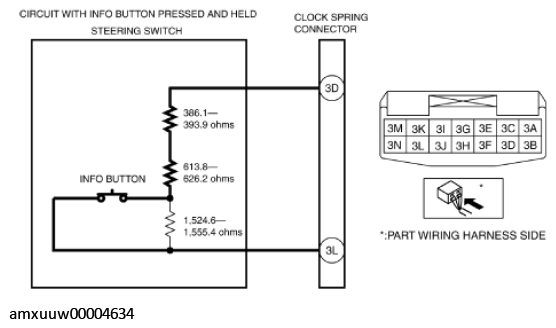

Resistance with INFO button pressed and held

999.9-1, 020.1 ohms

Courtesy of MAZDA MOTORS CORP.

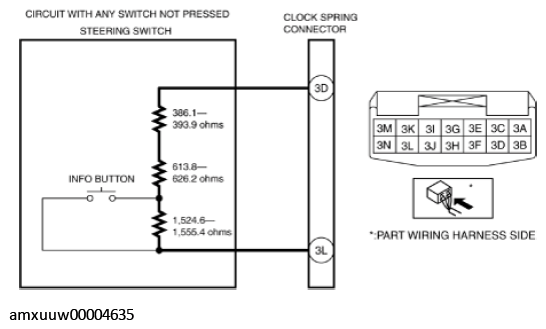

Resistance with any switch not pressed

2, 524.5-2, 575.5 ohms

Courtesy of MAZDA MOTORS CORP.

If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
