AudioPilot® MICROPHONE REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

AudioPilot® is a registered trademark of Bose® Corporation.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)

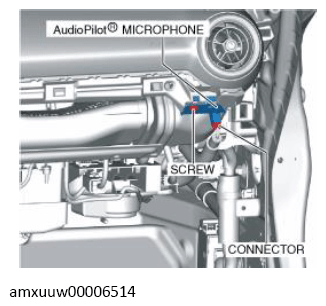

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
Remove the screw.
Remove the AudioPilot® microphone.
Install in the reverse order of removal.
