Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

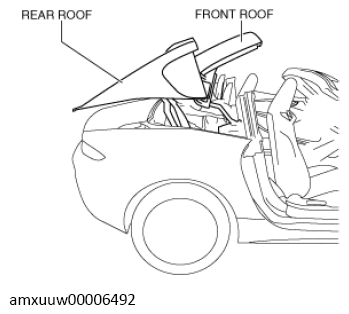

  1. Using the retractable hardtop switch, keep the front roof half-open. (retractable hardtop)
    G13491596Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Seat (RH) (See SEAT REMOVAL/INSTALLATION .)
    2. Scuff plate (RH) (See SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION .)
    5. Side shelf (RH) (See SIDE SHELF REMOVAL/INSTALLATION .)
  4. Disconnect the connectors.

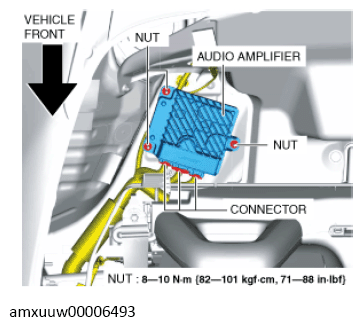

    Fig 1: Audio Amplifier, Connector And Nuts With Torque Specification
    G13491597Courtesy of MAZDA MOTORS CORP.
  5. Remove the nuts.
  6. Remove the audio amplifier.
  7. To remove the audio amplifier bracket, remove the nuts and then remove the audio amplifier bracket.

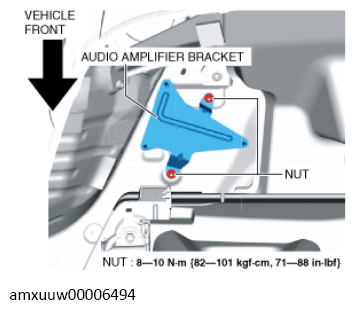

    Fig 2: Audio Amplifier Bracket Nuts With Torque Specification
    G13491598Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
