Foot Support Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
5. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
6. Shift lever knob (MT)
7. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
8. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
9. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
10. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
11. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
12. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION .)
13. Front cup holder bracket (See FRONT CUP HOLDER BRACKET REMOVAL/INSTALLATION .)
Partially peel back the floor covering No. 1.

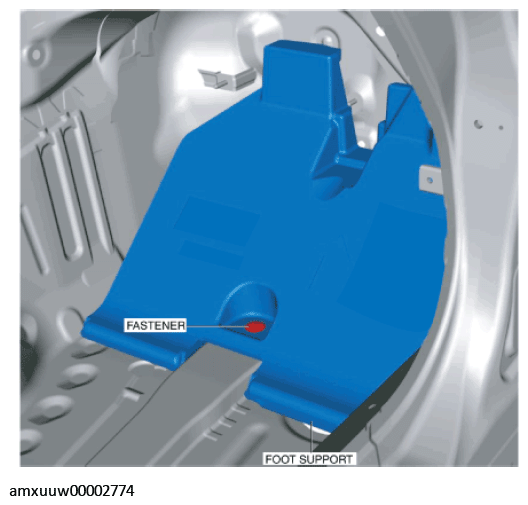

Remove the fastener.

Courtesy of MAZDA MOTORS CORP.

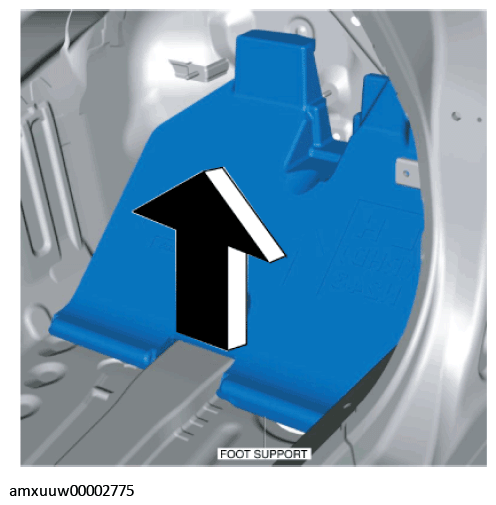

Remove the foot support in the direction of arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
