Passenger Compartment Temperature Sensor Removal/Installation (Auto A/C)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    5. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    6. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)

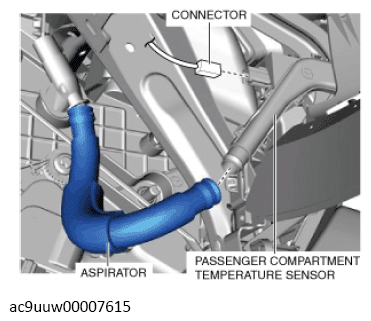

  3. Disconnect the connector.
    G13113544Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the aspirator from the passenger compartment temperature sensor.

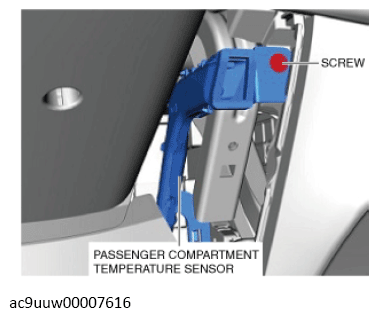

  5. Remove the screw.
    G13113545Courtesy of MAZDA MOTORS CORP.
  6. Remove the passenger compartment temperature sensor.
    G11431896Courtesy of MAZDA MOTORS CORP.
  7. Remove the aspirator.
    G11431897Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
