Vehicle Securing Position

WARNING: This page is about a different car, the 2017 Mazda CX-5 and 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

When transporting the vehicle by flat bed tow truck or trailer, secure the vehicle to the trailer using the holes and left tiedown loop shown in the figure.

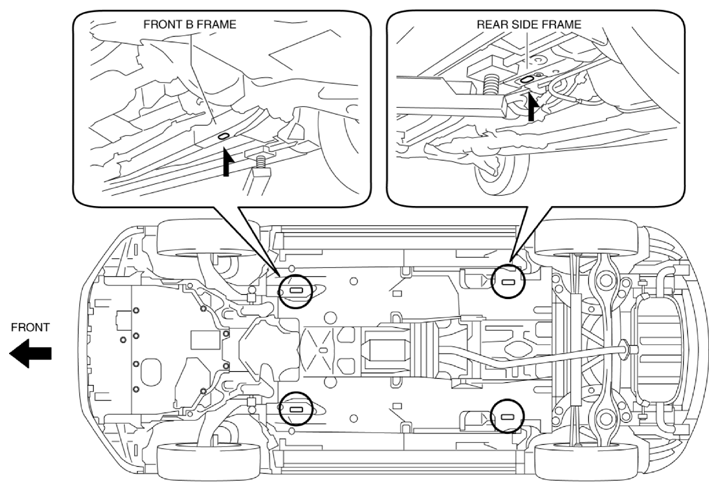

Fig 1: Identifying Front B-Frame And Rear Side Frame
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not use the tie down hook on the end of the rear bumper for towing or transporting the vehicle. The tie down hook is used only for transporting the vehicle by ship. Using the tie down hook could cause damage to the bumper and the vehicle body.
