Electrical Troubleshooting Tools: Ohmmeter

WARNING: This page is about a different car, the 2017 Mazda CX-5 and 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not connect the ohmmeter to any circuit where voltage is applied. This will damage the ohmmeter.
  • The ohmmeter is used to measure the resistance between two points in a circuit and to inspect for continuity and short circuits.

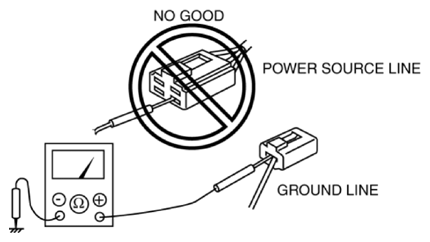

Fig 1: Caution For Connecting Ohmmeter
G10915681Courtesy of MAZDA MOTORS CORP.
