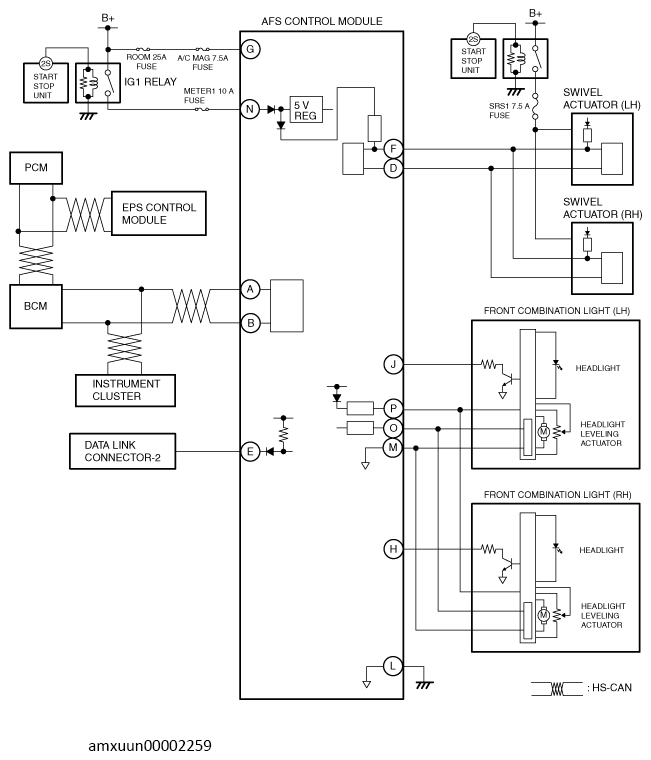

On-Board Diagnostic Wiring Diagram

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
G13491911Courtesy of MAZDA MOTORS CORP.
