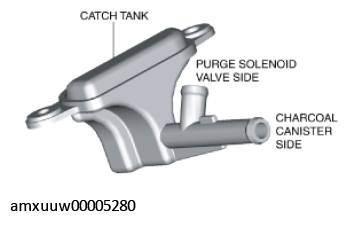

Catch Tank Inspection
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
- Plug the purge solenoid valve side into the catch tank.
- Inspect for air leakage when blowing air using your mouth into the charcoal canister side.
- If there is air leakage, replace the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
