Spring Pin Disassembly Note

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

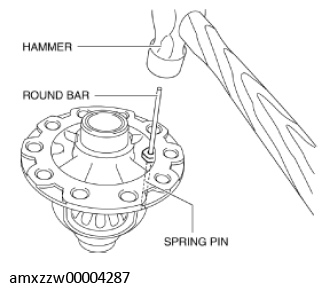

  1. Tap the spring pin out from the direction shown in the figure using a round bar (diameter: 4 mm {0.2 in}, length: 80 mm {3.1 in}) and a hammer.
    G11273965Courtesy of MAZDA MOTORS CORP.
