Upper Lateral Link Removal/Installation: Notes
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the rear wheel alignment and adjust if necessary. (See REAR WHEEL ALIGNMENT

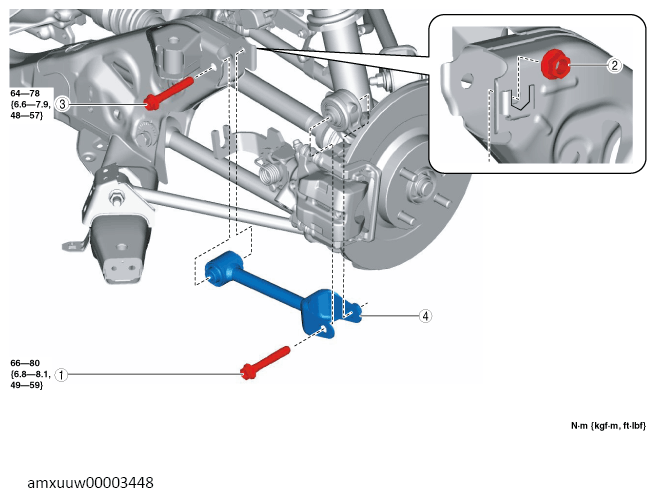

.)COMPONENT DESCRIPTION
1 Upper lateral link outer bolt
(See Upper Lateral Link Outer Bolt Installation Note .)2 Upper lateral link inner nut 3 Upper lateral link inner bolt
(See Upper Lateral Link Inner Bolt Installation Note .)4 Upper lateral link
(See Upper Lateral Link Installation Note .)
