Trailing Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.

Inspect the rear wheel alignment and adjust if necessary. (See REAR WHEEL ALIGNMENT .)

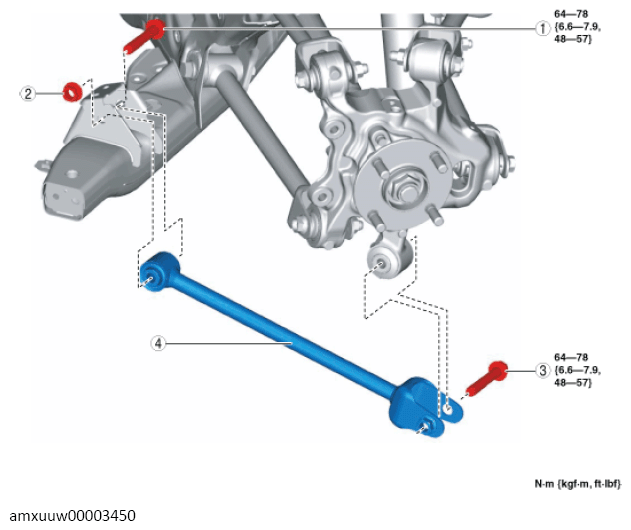

Fig 1: Trailing Link Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Trailing link inner bolt (See Trailing Link Inner Bolt Installation Note .)
2	Trailing link inner nut
3	Trailing link outer bolt
4	Trailing link (See Trailing Link Installation Note .)
