Rear Stabilizer Control Link Inspection
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION .)
- Inspect the rear stabilizer control link for bends or damage.
- If there is any malfunction, replace the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION .)
- Rotate and shake the rear stabilizer control link ball joint 10 times.

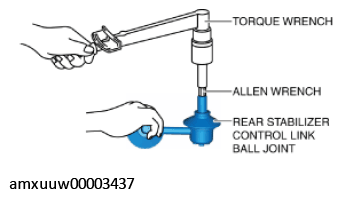

- Measure the rear stabilizer control link ball joint rotational torque using an Allen wrench and a torque wrench.
Rear stabilizer control link ball joint rotational torque
0.8-3.5 N.m {8.2-35 kgf.cm, 7.1-30 in.lbf}
- If not within the specification, replace the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION .)
- Even when within the specification, if there is excessive play in the rear stabilizer control link ball joint, replace the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION .)
