Upper Spring Seat Installation Note

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

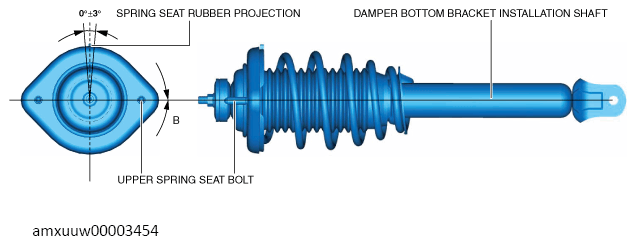

  1. Install the upper spring seat so that the upper spring seat bolt and damper bottom bracket installation shaft are placed at position B shown in the figure.
    G13488676Courtesy of MAZDA MOTORS CORP.

    B: 0°±3°
