Lower Link Removal/Installation: Notes
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the rear wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT
.)COMPONENT DESCRIPTION

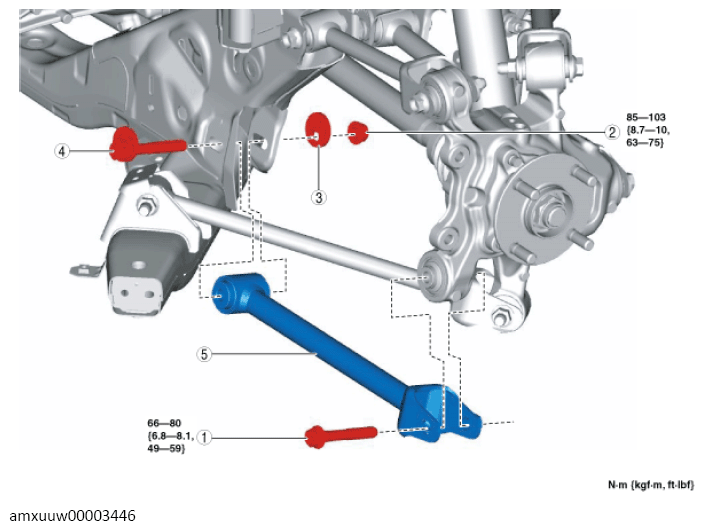

1 Lower link outer bolt
(See Lower Link Outer Bolt Installation Note .)2 Lower link inner nut
(See Adjusting Cam Bolt, Cam Plate and Lower Lateral Link Inner Nut Installation Note .)3 Cam plate
(See Adjusting Cam Bolt, Cam Plate and Lower Lateral Link Inner Nut Installation Note .)4 Adjusting cam bolt
(See Adjusting Cam Bolt, Cam Plate and Lower Lateral Link Inner Nut Installation Note .)5 Lower link
(See Lower Link Installation Note .)
