Leading Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

Remove the rear ABS wheel-speed sensor from the hub support.

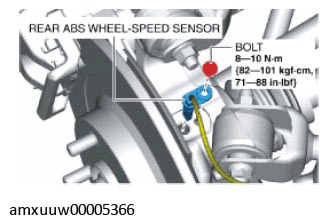

Fig 1: Rear ABS Wheel-Speed Sensor Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the rear ABS wheel-speed sensor wiring harness from the bracket and set it aside so that it does not interfere with the servicing.

Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

Inspect the rear wheel alignment and adjust if necessary. (See REAR WHEEL ALIGNMENT .)

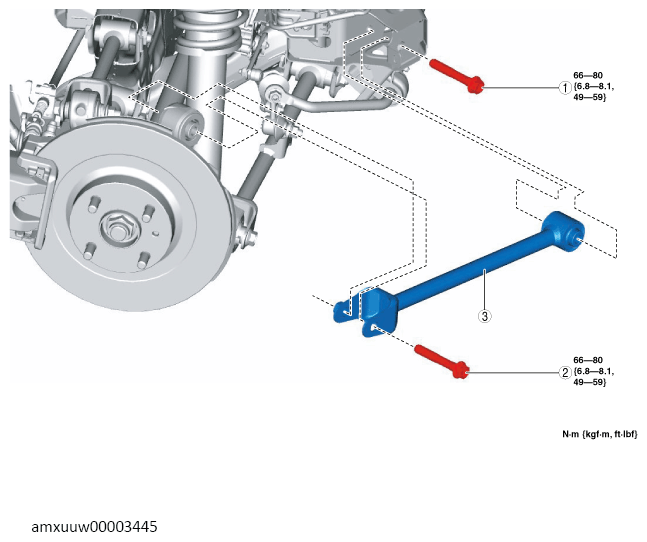

Fig 2: Leading Link Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Leading link inner bolt
2	Leading link outer bolt
3	Leading link (See Leading Link Installation Note .)
