Rear Brake Disc Pad Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the figure.
Install in the reverse order of removal.

After installation, pump the brake pedal a few times and inspect the following:

The disc pad projection is securely assembled to the piston groove.
Parking brake lever stroke (See PARKING BRAKE LEVER INSPECTION .)

Brake drag

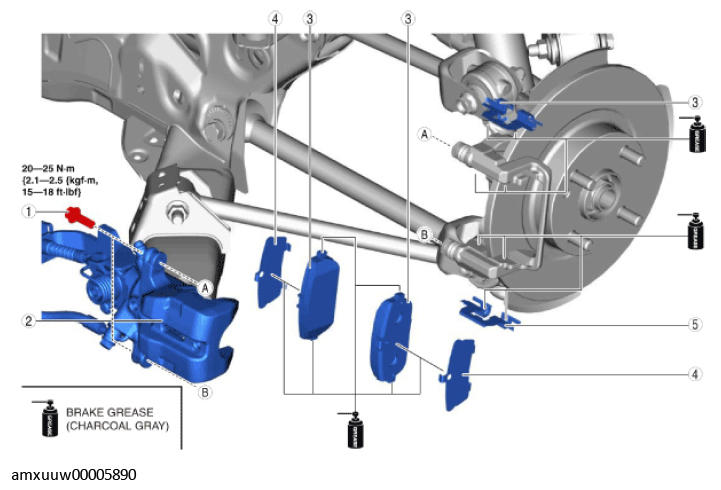

Fig 1: Rear Brake Disc Pad Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Rear brake caliper (See Rear Brake Caliper Removal Note .) (See Rear Brake Caliper Installation Note .)
3	Disc pad
4	Shim
5	Guide plate
