Front Brake Mounting Support Removal/Installation (With Single Piston Floating Caliper): Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.

Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

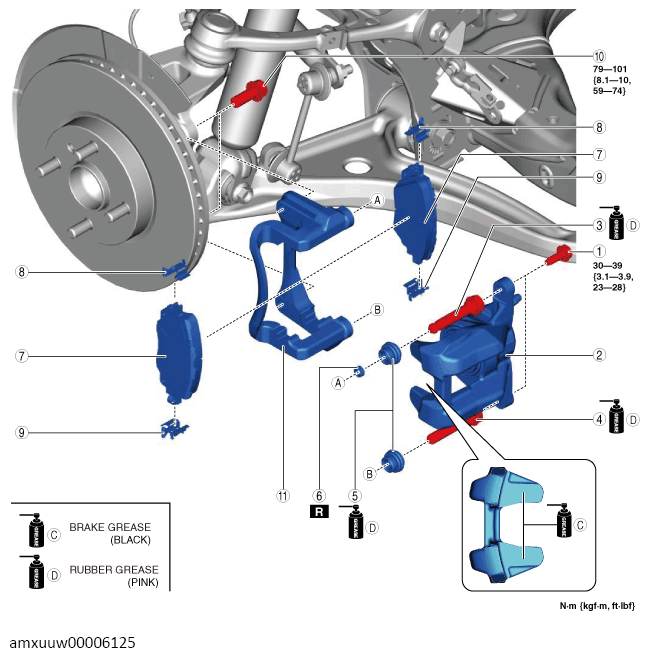

Fig 1: Front Brake Mounting Support Components With Torque Specification (With Single Piston Floating Caliper)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Front brake caliper (See Front Brake Caliper Removal Note .)
3	Slide pin (main)
4	Slide pin (sub)
5	Dust boot
6	Bush
7	Disc pad component
8	Guide plate (upper) (See Guide Plate Installation Note .)
9	Guide plate (lower) (See Guide Plate Installation Note .)
10	Bolt
11	Mounting support
