Electric Vacuum Pump Removal/Installation: Notes
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Switch the ignition ON (engine off or on).
- Turn the steering wheel to the right until it locks.
- Switch the ignition off.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front mudguard No. 1 and front deflector as a single unit. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
- Remove horn HI. (See HORN REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.COMPONENT DESCRIPTION

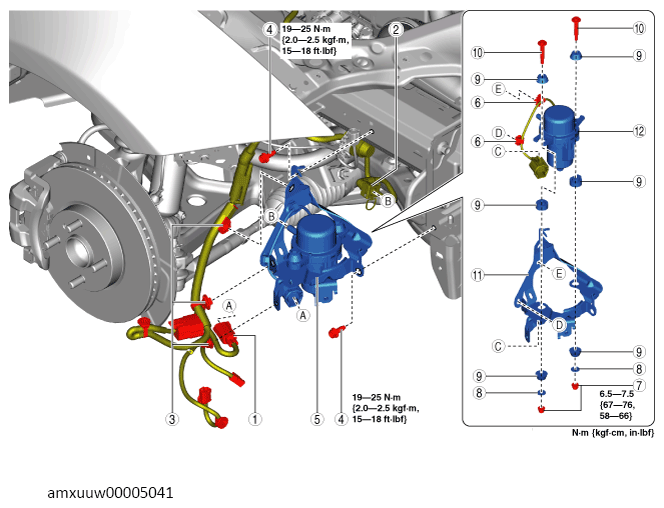

1 Electric vacuum pump connector 2 Quick release connector
(See Quick Release Connector Removal Note .)
