Wiper Motor And Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the wiper arm and blade. (See WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
CAUTION:
- Always apply protective tape to the windshield end. If the wiper motor and link contacts the windshield, it could damage the windshield.

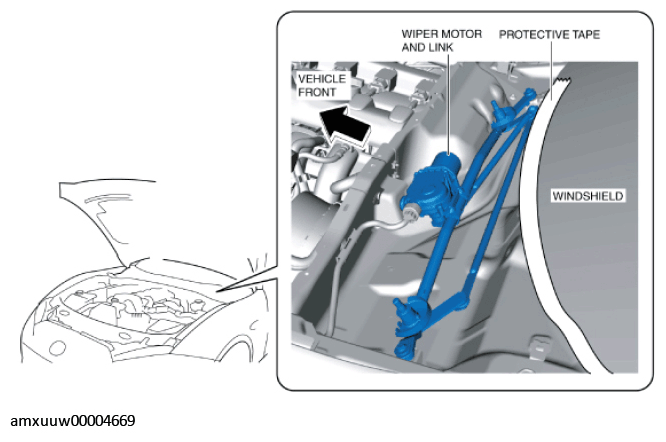

Apply protective tape to the area where the windshield end interferes with the wiper motor and link as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

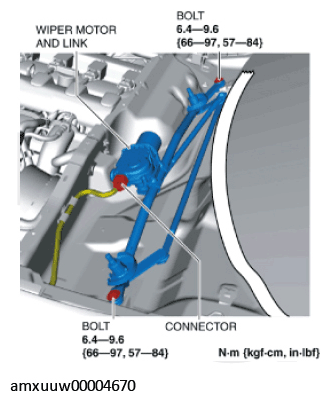

Fig 1: Wiper Motor And Link, Connector, Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

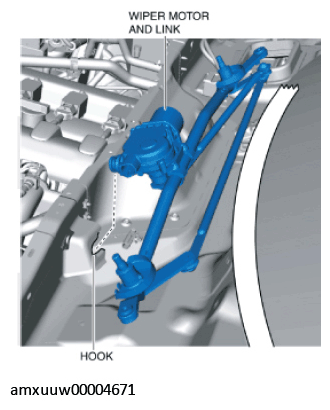

Pull out the wiper motor and link from the hook.

Courtesy of MAZDA MOTORS CORP.
Remove the wiper motor and link.

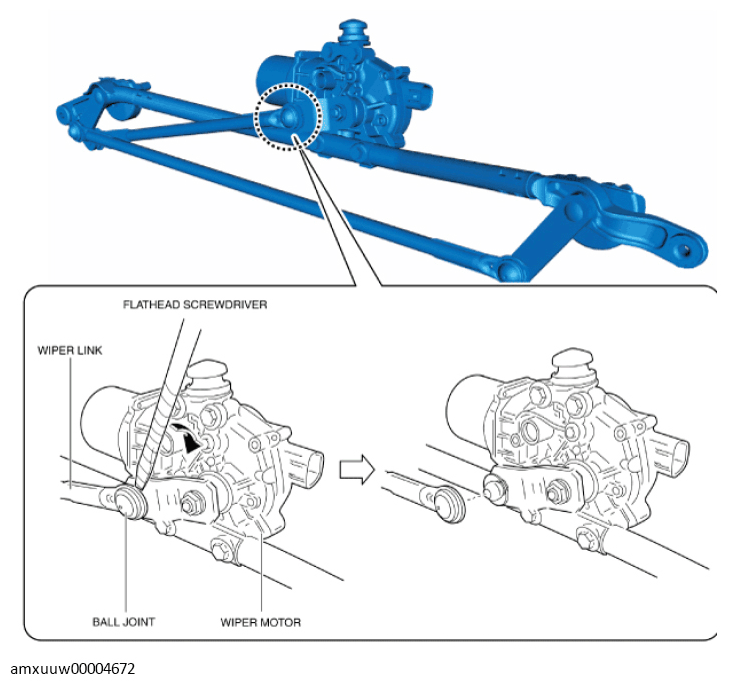

Insert a tape-wrapped flathead screwdriver into the gap between the wiper motor and the wiper link.

Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of the arrow shown in the figure and detach the wiper motor from the wiper link ball joint. (See BALL JOINT ASSEMBLY NOTE .)
Remove the bolts.

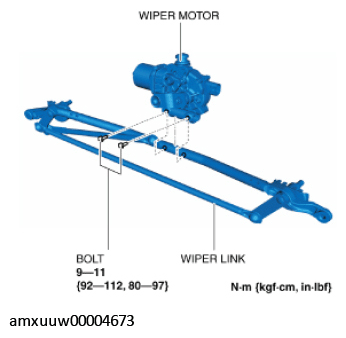

Fig 2: Wiper Motor And Link Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the wiper motor from the wiper link.
Install in the reverse order of removal.
