Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D] (MT).) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL] (AT).)
  2. Remove the flywheel (MT) or drive plate (AT). (See CLUTCH UNIT REMOVAL/INSTALLATION (MT).) (See DRIVE PLATE REMOVAL/INSTALLATION [SJ6A-EL] (AT).)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

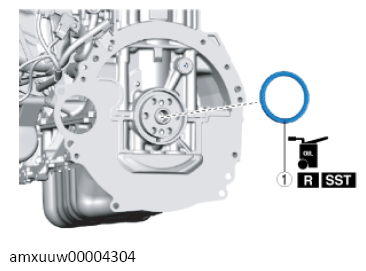

    G13488019Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Rear oil seal
    (See Rear Oil Seal Removal Note .)
    (See Rear Oil Seal Installation Note .)
