HVAC Control System Location Index (Manual A/C)
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

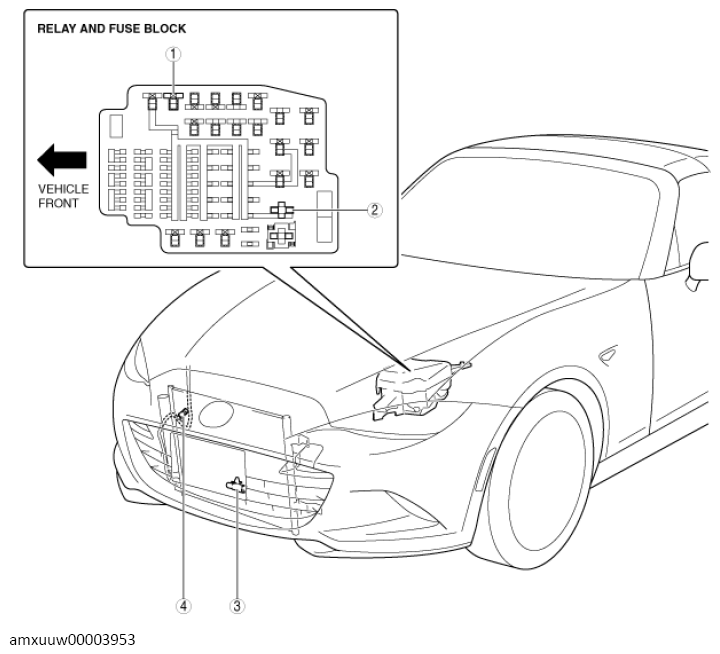

COMPONENT DESCRIPTION
| 1 | A/C relay (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 2 | Blower relay (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 3 | Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AMBIENT TEMPERATURE SENSOR INSPECTION (MANUAL A/C) .) |
| 4 | Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See REFRIGERANT PRESSURE SENSOR INSPECTION (MANUAL A/C) .) |

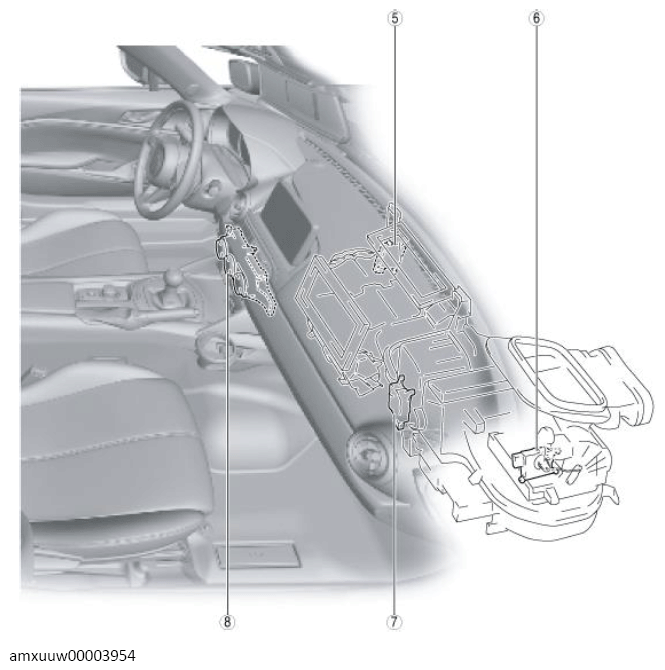

COMPONENT DESCRIPTION
| 5 | Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AIRFLOW MODE ACTUATOR INSPECTION (MANUAL A/C) .) |
| 6 | Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AIR INTAKE ACTUATOR INSPECTION (MANUAL A/C) .) |
| 7 | Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) .) (See AIR MIX ACTUATOR INSPECTION (MANUAL A/C) .) |
| 8 | Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION (MANUAL A/C) .) (See CLIMATE CONTROL UNIT INSPECTION (MANUAL A/C) .) |
