Daytime Running Light (DRL) Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Partially peel back the front mudguard No. 1. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

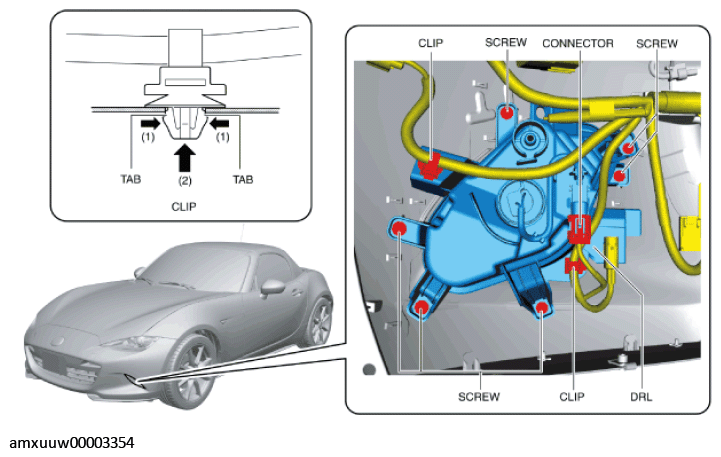

    G11275388Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the daytime running light (DRL).
  6. Remove the daytime running light (DRL).
  7. Install in the reverse order of removal.
