Tuner And Amp Unit (Tau) Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

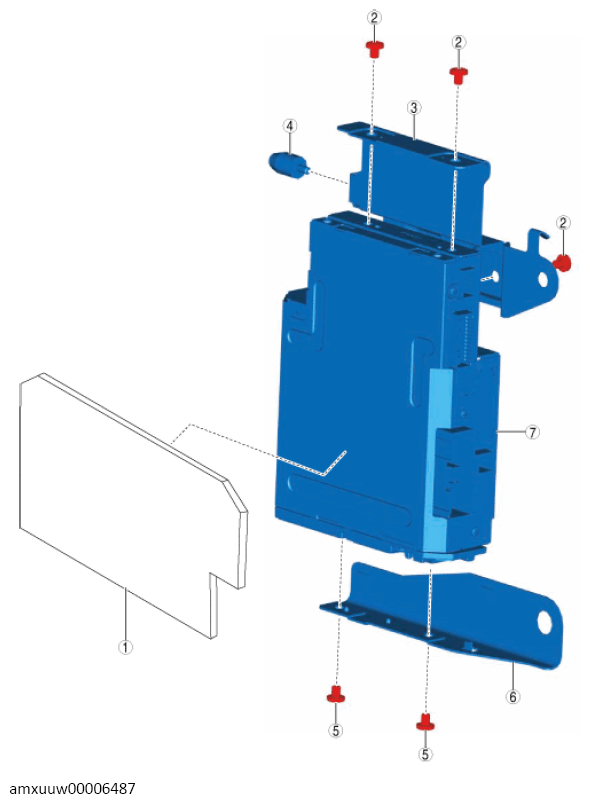

- Disassemble in the order indicated in the table.COMPONENT DESCRIPTION
1 Cushion pad
(See Cushion Pad Installation Note .)2 Screw A 3 Bracket A 4 Positioning pin 5 Screw B 6 Bracket B 7 TAU - Assemble in the reverse order of disassembly.
