Rod Antenna Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

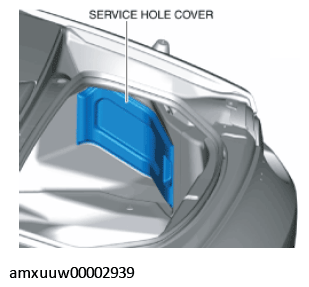

Remove the service hole cover on the trunk side trim (RH).

Courtesy of MAZDA MOTORS CORP.
Remove the nut.

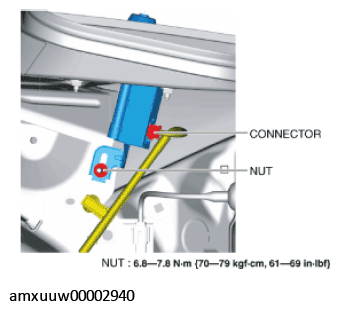

Fig 1: Connector And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the mounting nut using snap ring pliers.

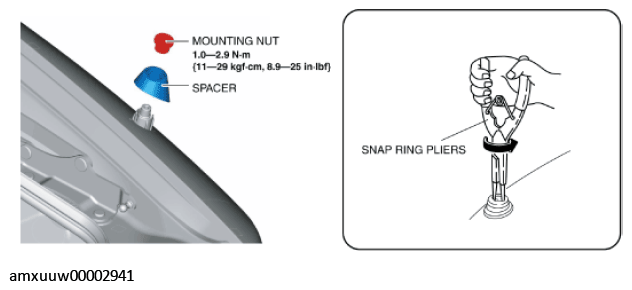

Fig 2: Spacer Mounting Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the spacer.

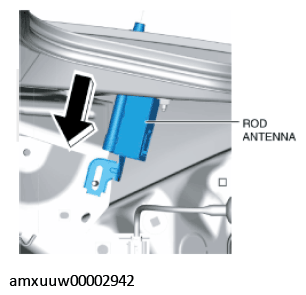

Remove the rod antenna in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
