Headrest Speaker Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Seat (See SEAT REMOVAL/INSTALLATION .)
    2. Seat side cover (See SEAT SIDE COVER REMOVAL/INSTALLATION .)
    3. Buckle (See BUCKLE REMOVAL/INSTALLATION .)
    4. Seat back component (See SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    5. Seat back trim (See SEAT BACK TRIM REMOVAL/INSTALLATION .)
  3. Peel off the tapes.

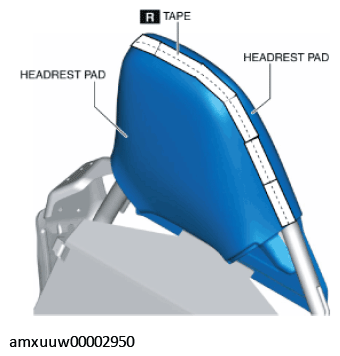

    G11274728Courtesy of MAZDA MOTORS CORP.
  4. Remove the headrest pads.
  5. Disconnect the connectors.

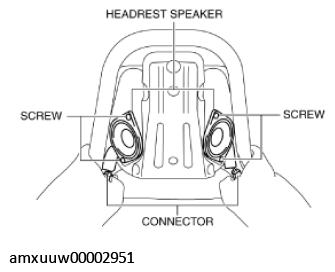

    G11274729Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.
  7. Remove the headrest speakers.
  8. Install in the reverse order of removal.
