Net (Seat Back Side)

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Seat (See SEAT REMOVAL/INSTALLATION .)
    2. Seat side cover (See SEAT SIDE COVER REMOVAL/INSTALLATION .)
    3. Buckle (See BUCKLE REMOVAL/INSTALLATION )
    4. Seat back component (See SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    5. Seat back trim (See SEAT BACK TRIM REMOVAL/INSTALLATION .)
  4. Remove the C-rings.
    G11278791Courtesy of MAZDA MOTORS CORP.

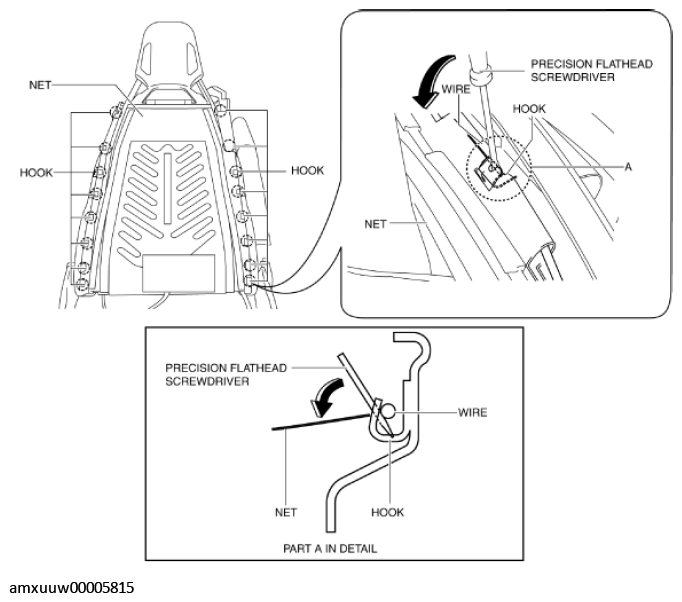

  5. Insert a precision flathead screwdriver in the position shown in the figure.
    G11278792Courtesy of MAZDA MOTORS CORP.
  6. Move the precision flathead screwdriver in the direction of the arrow shown in the figure to detach the wire from the hook.
  7. Detach all of the wires from the hooks and remove the net.
  8. Install in the reverse order of removal. (See NET INSTALLATION NOTE .)
