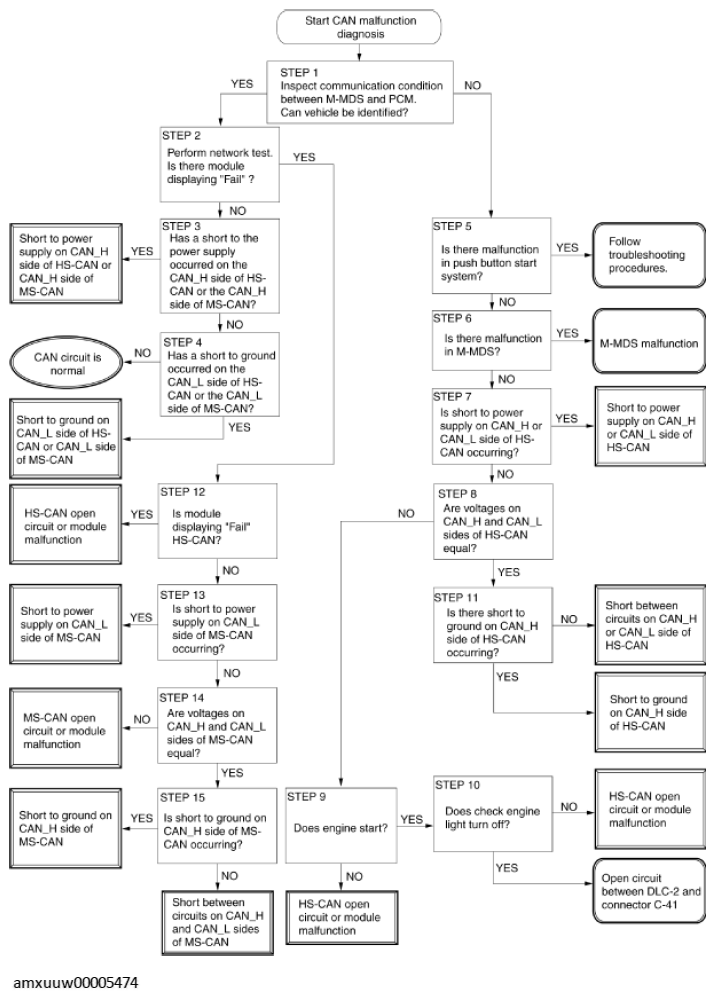

Controller Area Network (Can) Malfunction Diagnosis Flow: Flowchart

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
