Home >> Mazda >> 2020 >> CX-5 Signature >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting (VIN Y) >> Foreword >> Troubleshooting Procedure

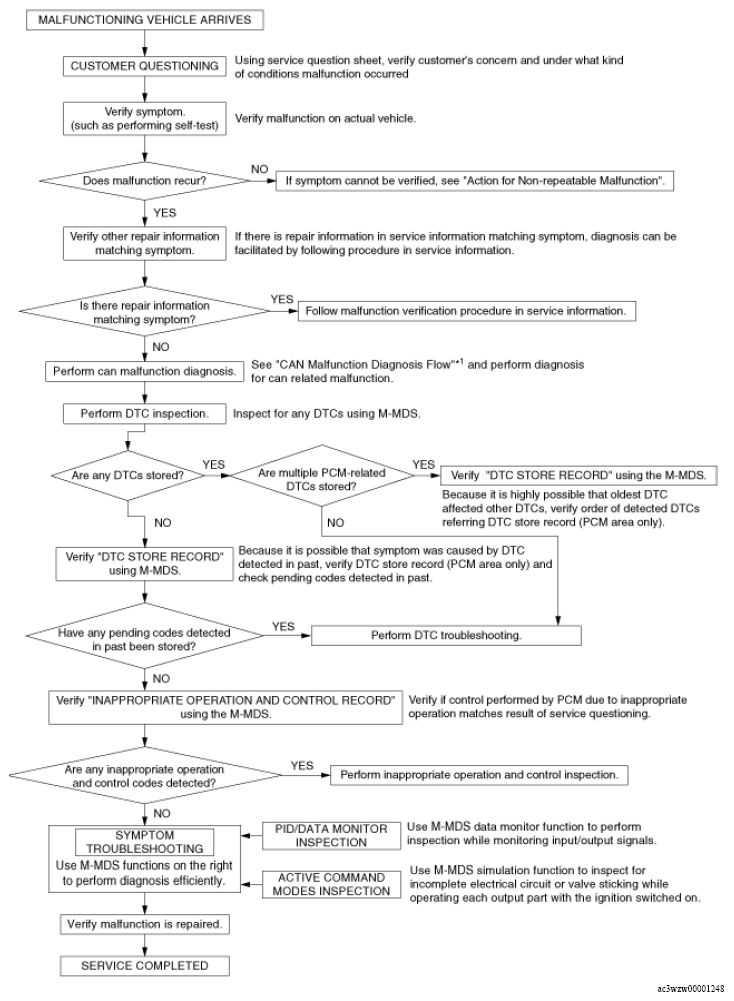

Troubleshooting Procedure

G13118874Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.5T, SKYACTIV-D 2.2] .)
