Instrument Cluster Installation Note

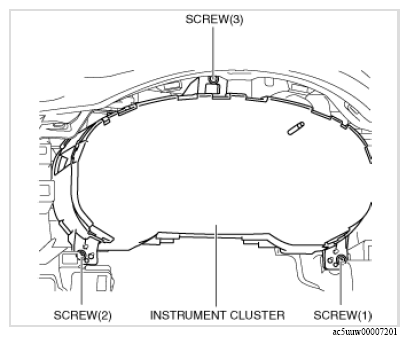

Install the screws in the order of (1), (2) and (3).

G13115830

Courtesy of MAZDA MOTORS CORP.
