Replacing combiner

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Meter Hood (See METER HOOD REMOVAL/INSTALLATION .)
    2. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    3. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    4. Active driving display (See REPLACING ACTIVE DRIVING DISPLAY AS SINGLE COMPONENT .)

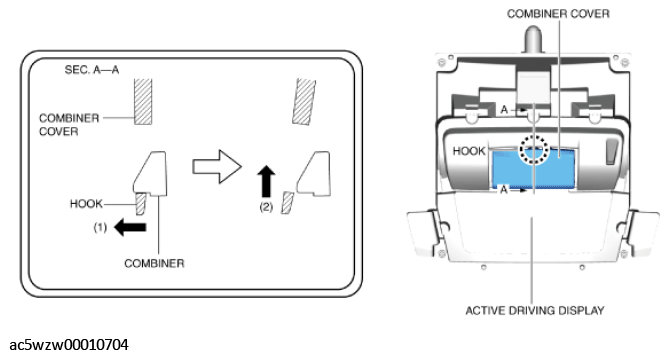

  3. Lift up the cover hook in the direction of arrow (1) shown in the figure, move it in the direction of arrow (2), and detach the cover hooks from the active driving display.
    G11427783Courtesy of MAZDA MOTORS CORP.

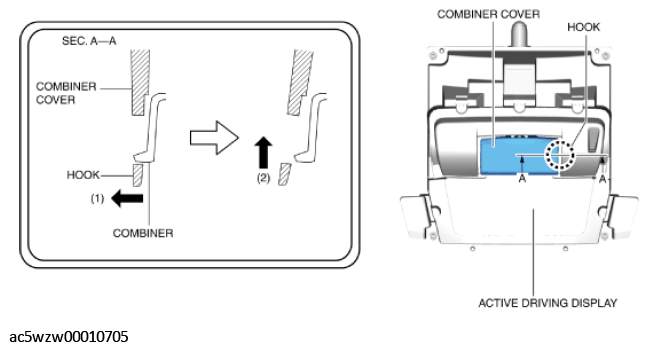

  4. Lift up the cover hook in the direction of arrow (1) shown in the figure, move it in the direction of arrow (2), and detach the cover hooks from the active driving display.
    G11427784Courtesy of MAZDA MOTORS CORP.

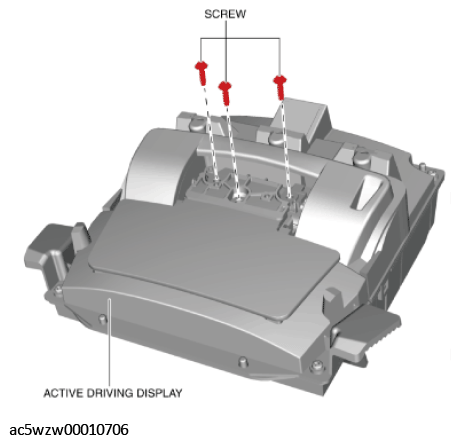

  5. Remove the screws.
    G11427785Courtesy of MAZDA MOTORS CORP.

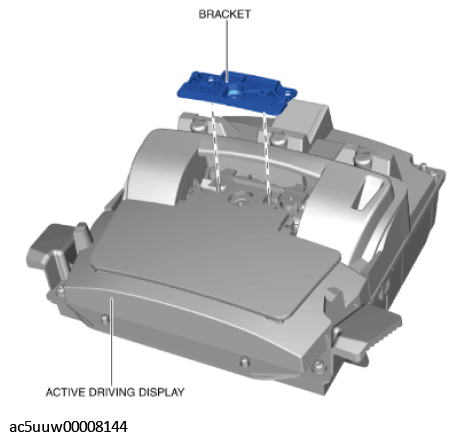

  6. Remove the bracket.
    G11427786Courtesy of MAZDA MOTORS CORP.

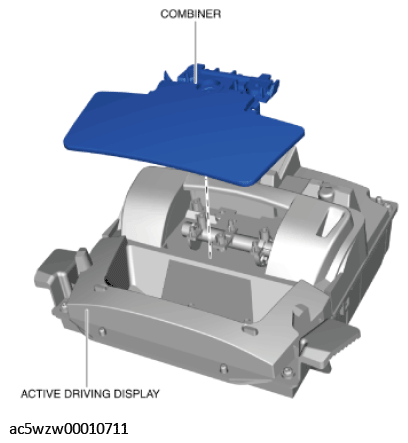

  7. Remove the combiner.
    G11427787Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
