Outer Mirror Glass Removal

NOTE:
  • Removal of the outer mirror glass can be facilitated by warming the back of the glass to approx. 50°C {90°F} to 60°C {108°F} using a heat gun.
CAUTION:
  • Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} could deform it.

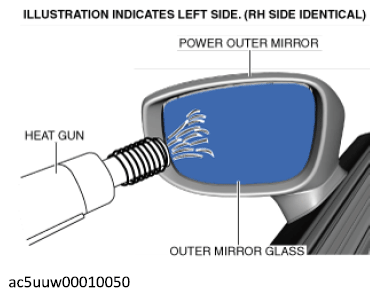

G12183751Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. To facilitate removal of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

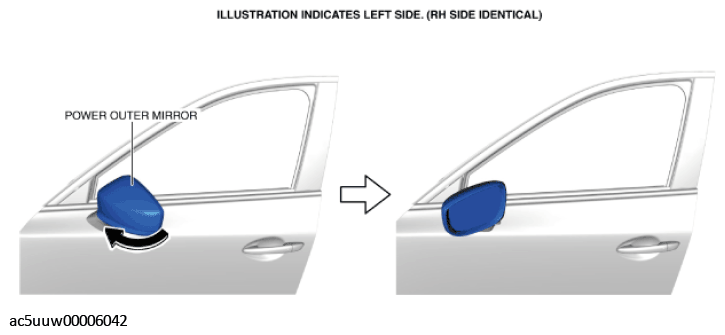

    G11427674Courtesy of MAZDA MOTORS CORP.
  3. To prevent scratches or damage, apply protective tape to the positions shown in the figure.

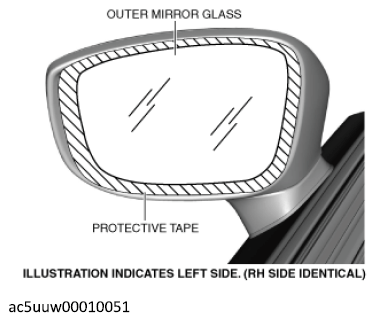

    G12183753Courtesy of MAZDA MOTORS CORP.
  4. Move the outer mirror glass in the directions of the arrows shown in the figure to secure a space for inserting your fingers.

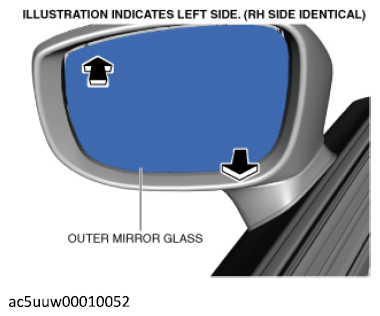

    G12183754Courtesy of MAZDA MOTORS CORP.
  5. Insert your fingers into the area shown in the figure, and move the outer mirror glass in the direction of the arrow to detach pin A.
    CAUTION:
    • When moving the outer mirror glass, if only the mirror glass is moved, the mirror glass could separate from the outer mirror glass holder. Move the outer mirror glass holder together with the mirror glass when moving the outer mirror glass.

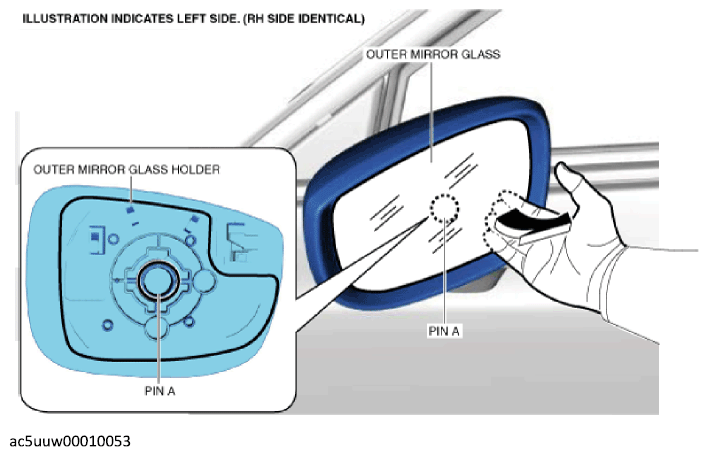

    G12183755Courtesy of MAZDA MOTORS CORP.
  6. Insert your fingers behind the glass in the same manner as Step 4 and disengage the remaining pins B and C.

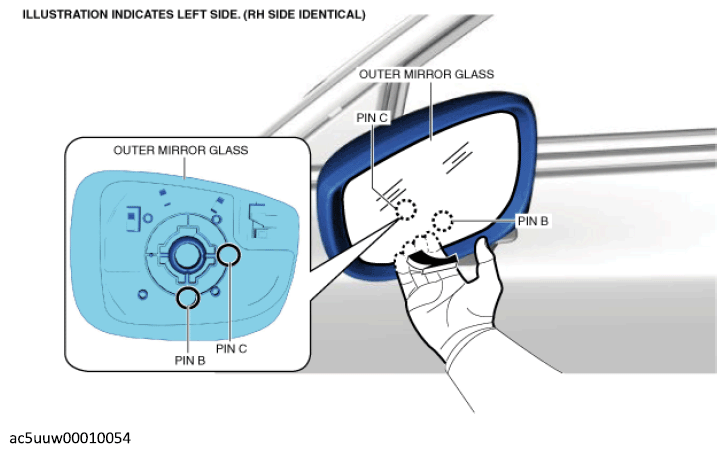

    G12183756Courtesy of MAZDA MOTORS CORP.

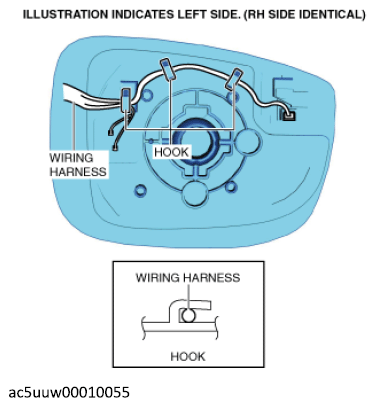

  7. Remove the wiring harness from the hooks.
    G12183757Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the heated outer mirror connectors. (with heated outer mirror)

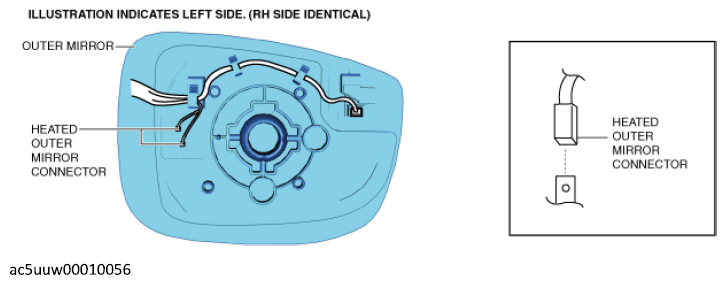

    G12183758Courtesy of MAZDA MOTORS CORP.
  9. Insert a small, tape-wrapped flathead screwdriver as shown in the figure and disconnect the blind spot monitoring (BSM) indicator light connector. (with blind spot monitoring (BSM) system)
    CAUTION:
    • Remove the blind spot monitoring (BSM) indicator light connector being careful not to pry the blind spot monitoring (BSM) indicator light housing after inserting a tape-wrapped flathead screwdriver. If the blind spot monitoring (BSM) indicator light connector and the housing are damaged or deformed, poor contact of the connector may occur, causing the indicator light not to turn on.

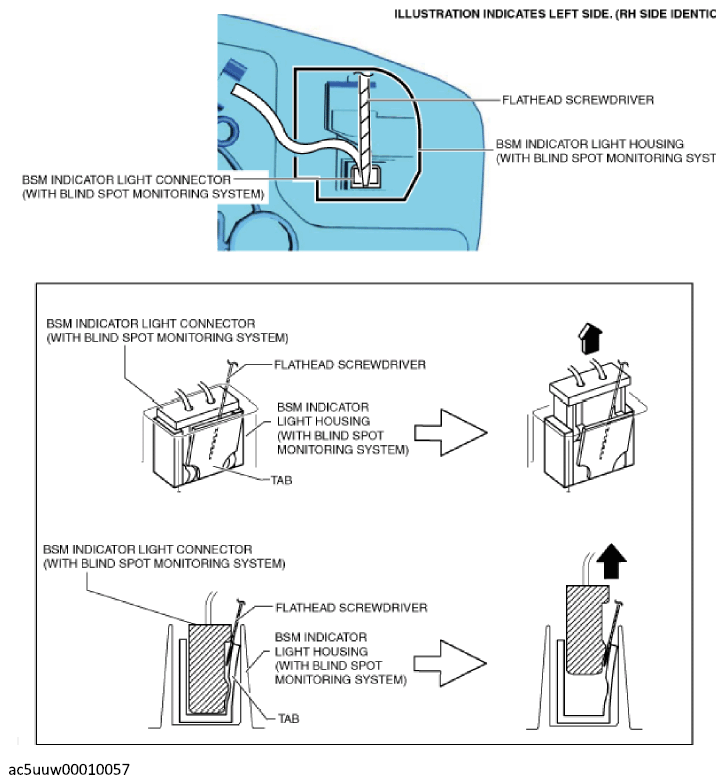

    G12183759Courtesy of MAZDA MOTORS CORP.
  10. Remove the outer mirror glass holder and the outer mirror glass as a single unit.
