Center Trunk Board

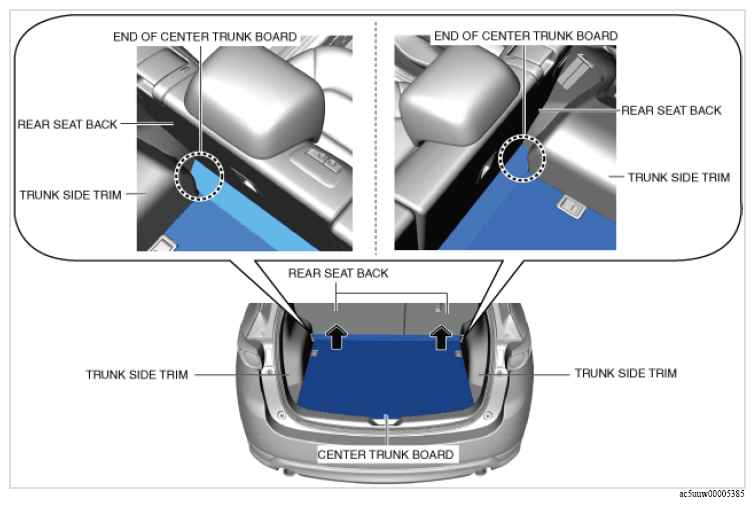

  1. Move the center trunk board in the direction of the arrows shown in the figure, and remove the ends of the center trunk board from the gap between the trunk side trim and the rear seat back.
    G13115057Courtesy of MAZDA MOTORS CORP.

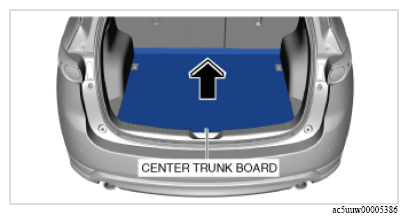

  2. Remove the center trunk board in the direction of the arrow shown in the figure.
    G13115058Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
