Front Console Box Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    3. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

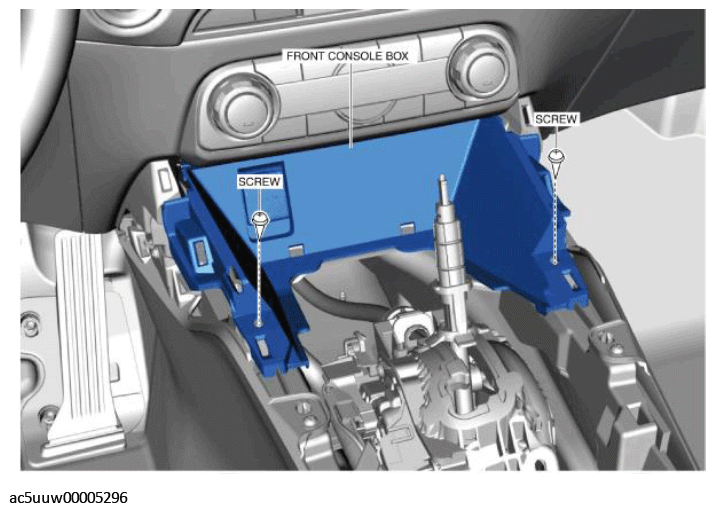

  3. Remove the screws.
    G11427915Courtesy of MAZDA MOTORS CORP.

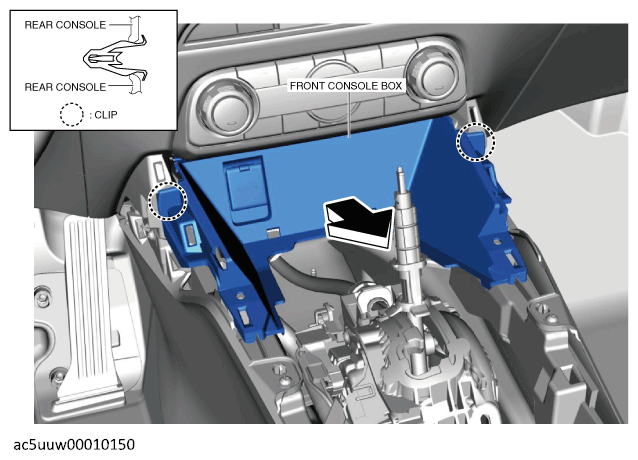

  4. Move the front console box in the direction of the arrow shown in the figure and remove it while detaching the clips.
    G12187713Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the front accessory socket connector.
  6. Install in the reverse order of removal.
