Lower Column Cover

  1. Remove the upper column cover. (See UPPER COLUMN COVER .)

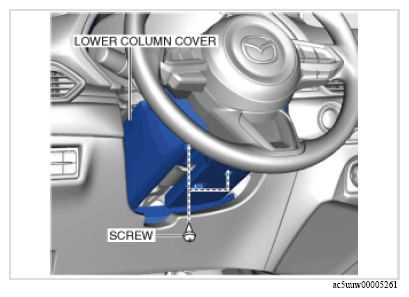

  2. Remove the screws.
    G13114859Courtesy of MAZDA MOTORS CORP.

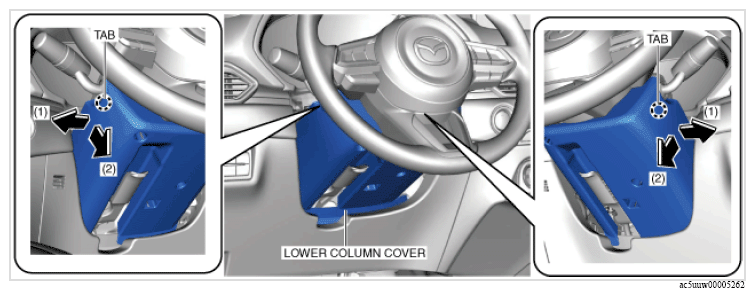

  3. Lower the lower column cover in the direction of arrows (2) shown in the figure while keeping it open in the direction of arrows (1).
    G13114860Courtesy of MAZDA MOTORS CORP.

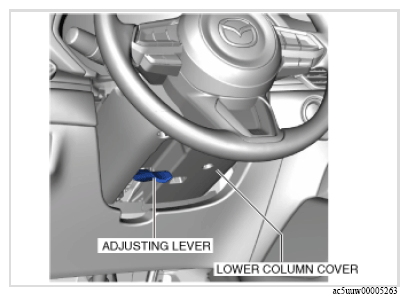

  4. Lower the adjusting lever to the bottommost position.
    G13114861Courtesy of MAZDA MOTORS CORP.

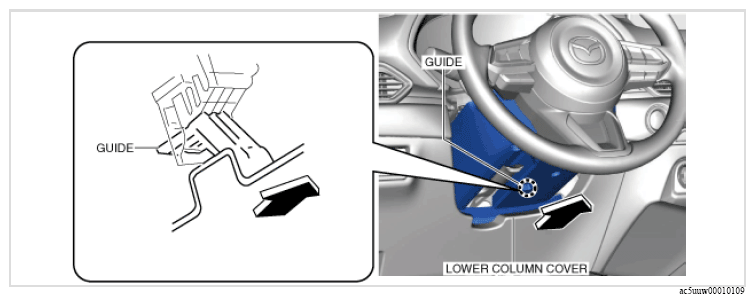

  5. Move the lower column cover in the direction of the arrow shown in the figure and remove it while pulling out the guide.
    G13114862Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
