Center Display Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    2. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    4. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
  3. Remove the bolts.
    Fig 1: Center Display Component, Screws And Bolts With Torque Specification
    G11426057Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Pull the center display component in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and pins.
    G11426058Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connectors.
    G11426059Courtesy of MAZDA MOTORS CORP.

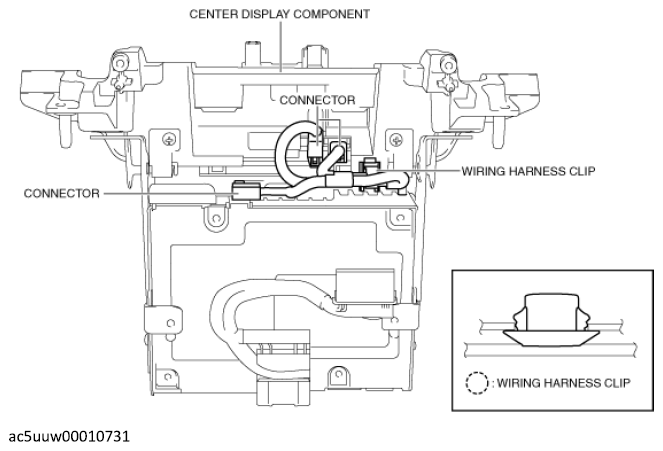

  7. Disconnect the connectors.
    G12189683Courtesy of MAZDA MOTORS CORP.
  8. Remove the wiring harness clip.
  9. Remove the screws.
    G11426061Courtesy of MAZDA MOTORS CORP.
  10. Remove the center display from the connectivity master unit (CMU).
  11. Install in the reverse order of removal.
