360° View Monitor Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts.
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Partially peel back the floor covering.
  4. Remove the foot support. (See FOOT SUPPORT REMOVAL/INSTALLATION .)
  5. Remove the nuts.
    Fig 1: Floor Cover And Nuts With Torque Specification
    G12183269Courtesy of MAZDA MOTORS CORP.
  6. Remove the cover.
  7. Disconnect the connector.

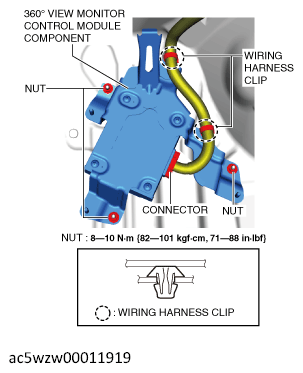

    Fig 2: 360° View Monitor Control Module Component, Wiring Harness Clip, Connector And Nuts With Torque Specification
    G12183270Courtesy of MAZDA MOTORS CORP.
  8. Remove the wiring harness clips.
  9. Remove the nuts.
  10. Remove the 360° view monitor control module component.
  11. Remove the screws.

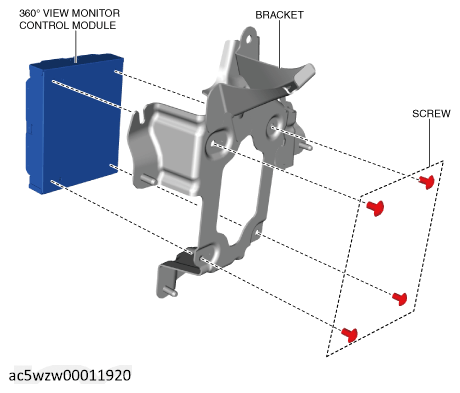

    G12183271Courtesy of MAZDA MOTORS CORP.
  12. Remove the 360° view monitor control module from the bracket.
  13. Install in the reverse order of removal.
  14. Perform the 360° view monitor system aiming. (See 360° VIEW MONITOR SYSTEM AIMING .)
