Pressure Control Valve Inspection (Us)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the pressure control valve. (See PRESSURE CONTROL VALVE REMOVAL/INSTALLATION (US) .)
    CAUTION:
    • Do not apply a pressure 0.3 kPa {0.003 kgf/cm2 , 0.04 psi} or more. Doing so will damage the pressure control valve and evaporative hose.

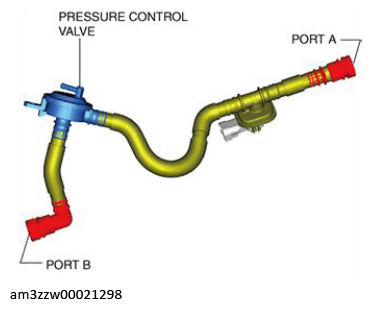

  2. Apply a pressure of 0.3 kPa {0.003 kgf/cm2 , 0.04 psi} to port A.
    G13175281Courtesy of MAZDA MOTORS CORP.
  3. Verify that there is airflow from port B.
