Brace Bar Installation Note

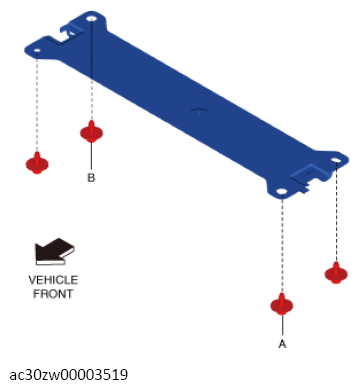

  1. Tighten bolt A shown in the illustration to the specified torque.
    G13557349Courtesy of MAZDA MOTORS CORP.
  2. Tighten bolt B shown in the illustration to the specified torque.
  3. Tighten the remaining bolts to the specified torque.
