Rear Door Glass Run-Channel Removal/Installation

  1. Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Power window sub switch (rear) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
    5. Rear beltline moulding (See REAR BELTLINE MOULDING REMOVAL/INSTALLATION .)
    6. Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)

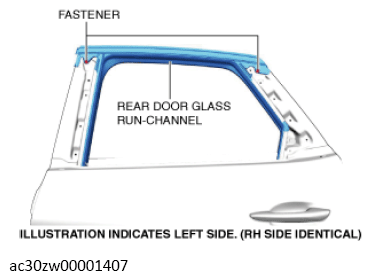

  4. Remove the fasteners.
    G13560132Courtesy of MAZDA MOTORS CORP.

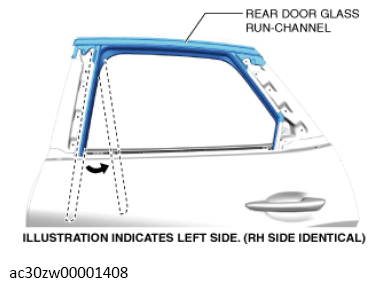

  5. Partially peel back the rear door glass run-channel.
    G13560133Courtesy of MAZDA MOTORS CORP.

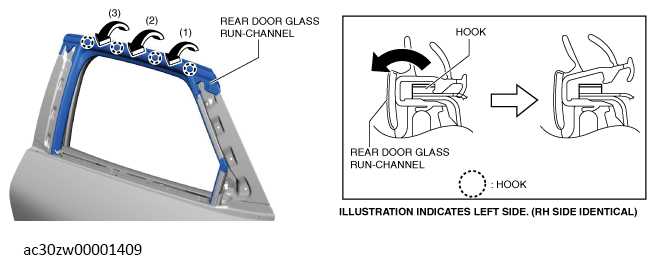

  6. Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the illustration and remove it from the rear door hooks.
    G13560134Courtesy of MAZDA MOTORS CORP.
  7. Remove the rear door glass run-channel.
  8. Install in the reverse order of removal.
