Ignition Coil/Ion Sensor Removal/Installation

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION SKYACTIV-G (WITH CYLINDER DEACTIVATION (US)) .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

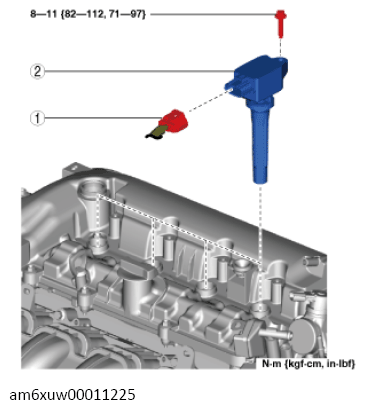

Fig 1: Ignition Coil/Ion Sensor Components With Torque Specification (SKYACTIV-G, Without Cylinder Deactivation, US)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Ignition coil/ion sensor
