Starter Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

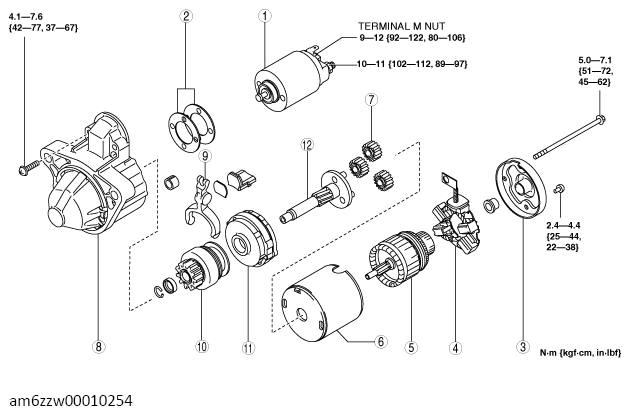

    Fig 1: Starter Components With Torque Specification (SKYACTIV-G, Without Cylinder Deactivation, US)
    G13557544Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Magnetic switch
    2 Adjustment washer
    3 Rear housing
    4 Brush and brush holder
    5 Armature
    6 Yoke
    7 Planetary gear
    8 Front cover
    9 Lever
    10 Drive pinion
    11 Internal gear
    12 Gear shaft
