Power Liftgate (PLG) Control Module Inspection: Notes
- Remove the trunk side trim.
- Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).
- If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.
- If the system does not work normally even though the inspection items are normal, replace the power liftgate (PLG) control module.
- If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.

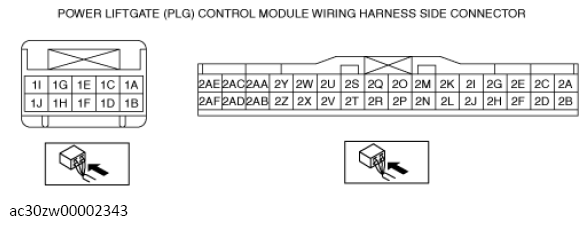

Terminal Voltage Table (Reference)
| Terminal | Signal name | Connected to | Measurement condition | Voltage (V)/Continuity | Inspection item(s) |
|---|---|---|---|---|---|
| 1A | PLG_O_R | Power liftgate (PLG) drive unit (RH) | Liftgate open operation | PWM signal Hi B+/Lo 1.0 or less |
Power liftgate (PLG) drive unit (RH) |
| Other | 1.0 or less | ||||
| 1B | P_BATT | F7 25A fuse F3850A fuse MAIN 200A fuse |
Under any condition | B+ | F7 25A fuse F3850A fuse MAIN 200A fuse |
| 1C | PLG_C_R | Power liftgate (PLG) drive unit (RH) | Liftgate close operation | PWM signal Hi B+/Lo 1.0 or less |
Power liftgate (PLG) drive unit (RH) |
| Other | 1.0 or less | ||||
| 1D | - | - | - | - | - |
| 1E | PLG_O_L | Power liftgate (PLG) drive unit (LH) | Liftgate open operation | PWM signal Hi B+/Lo 1.0 or less |
Power liftgate (PLG) drive unit (LH) |
| Other | 1.0 or less | ||||
| 1F | CLOSURE_C | Liftgate latch and lock actuator | After opening the liftgate, operate the closure motor with the liftgate half-closed | B+-1.0 or less | Liftgate latch and lock actuator |
| 1G | PLG_C_L | Power liftgate (PLG) drive unit (LH) | Liftgate close operation | B+ | Power liftgate (PLG) drive unit (LH) |
| Other | 1.0 or less | ||||
| 1H | CLOSURE_O | Liftgate latch and lock actuator | Open the fully closed liftgate by hand | 0→B+→0 | Liftgate latch and lock actuator |
| 1I | GND | Body ground | Under any condition | Approx. 0 |
|
| 1J | - | - | - | - | - |
| 2A | CAN_H | - | Because this terminal is for communication, good/no good judgment by terminal voltage is not possible | ||
| 2B | CAN_L | - | Because this terminal is for communication, good/no good judgment by terminal voltage is not possible | ||
| 2C | PLG_SEN_GND_R | Power liftgate (PLG) drive unit (RH) | Under any condition | 1.0 or less | Power liftgate (PLG) drive unit (RH) |
| 2D | PLG_SEN_GND_L | Power liftgate (PLG) drive unit (LH) | Under any condition | 1.0 or less | Power liftgate (PLG) drive unit (LH) |
| 2E | LIN | - | - | - | - |
| 2F | - | - | - | - | - |
| 2G | PLG_SEN_V_L | Power liftgate (PLG) drive unit (LH) | Liftgate is operating | 5. 0 | Power liftgate (PLG) drive unit (LH) |
| 2H | PLG_SEN_A_L | Power liftgate (PLG) drive unit (LH) | Liftgate is operating | Wave pattern (See INSPECTION USING AN OSCILLOSCOPE (REFERENCE) .) PWM signal Hi 5.0/Lo 1.0 or less |
Power liftgate (PLG) drive unit (LH) |
| 2I | PLG_SEN_V_R | Power liftgate (PLG) drive unit (RH) | Liftgate is operating | 5.0 | Power liftgate (PLG) drive unit (RH) |
| 2J | PLG_SEN_B_L | Power liftgate (PLG) drive unit (LH) | Liftgate is operating | Wave pattern (See INSPECTION USING AN OSCILLOSCOPE (REFERENCE) .) PWM signal Hi 5.0/Lo 1.0 or less |
Power liftgate (PLG) drive unit (LH) |
| 2K | PLG_SEN_A_R | Power liftgate (PLG) drive unit (RH) | Liftgate is operating | Wave pattern (See INSPECTION USING AN OSCILLOSCOPE (REFERENCE) .) PWM signal Hi 5.0/Lo 1.0 or less |
Power liftgate (PLG) drive unit (RH) |
| 2L | TOUCHSEN_R | Power liftgate (PLG) touch sensor (RH) | When pressure is applied to the power liftgate (PLG) touch sensor (RH) | 1.0 or less | Power liftgate (PLG) touch sensor (RH) |
| Other | B+ | ||||
| 2M | PLG_SEN_B_R | Power liftgate (PLG) drive unit (RH) | Liftgate is operating | Wave pattern (See INSPECTION USING AN OSCILLOSCOPE (REFERENCE) .) PWM signal Hi 5.0/Lo 1.0 or less |
Power liftgate (PLG) drive unit (RH) |
| 2N | TOUCHSEN_L | Power liftgate (PLG) touch sensor (LH) | When pressure is applied to the power liftgate (PLG) touch sensor (LH) | 1.0 or less | Power liftgate (PLG) touch sensor (LH) |
| Other | B+ | ||||
| 2O | - | - | - | - | - |
| 2P | - | - | - | - | - |
| 2Q | TOUCHSEN_GND |
|
Under any condition | 1.0 or less |
|
| 2R | - | - | - | - | - |
| 2S | - | - | - | - | - |
| 2T | - | - | - | - | - |
| 2U | - | - | - | - | - |
| 2V | - | - | - | - | - |
| 2W | IG | F47 15A fuse IG1relay No. 2 MAIN 200A fuse |
Ignition switched ON (engine off or on) | B+ | F47 15A fuse IG1relay No. 2 MAIN 200A fuse |
| Ignition switched off or at ACC | 1.0 or less | ||||
| 2X | S_BATT | JB No. 1 F50 15A fuse F27 25A fuse MAIN 200A fuse |
Under any condition | B+ | JB No. 1 F50 15A fuse F27 25A fuse MAIN 200A fuse |
| 2Y | HALF_SW | Liftgate latch and lock actuator | After opening the liftgate, operate the closure motor with the liftgate half-closed | 1.0 or less→B+ | Liftgate latch and lock actuator |
| Liftgate opened | 1.0 or less | ||||
| 2Z | - | - | - | - | - |
| 2AA | CLAW_SW | Liftgate latch and lock actuator | After opening the liftgate, operate the closure motor with the liftgate half-closed | 1.0 or less→B+→1.0 or less | Liftgate latch and lock actuator |
| Emergency lever is pushed | B+ | ||||
| 2AB | RETURN_SW | Liftgate latch and lock actuator | After opening the liftgate, operate the closure motor with the liftgate half-closed | B+-1.0 or less-B+ | Liftgate latch and lock actuator |
| 2AC | CARGOLAMP_SW | Liftgate latch and lock actuator | Liftgate open operation | B+-1.0 or less | Liftgate latch and lock actuator |
| Liftgate closed | B+ | ||||
| 2AD | CARGOLAMP_SW_EX | Electrical supply unit | Liftgate open operation | B+-1.0 or less | Electrical supply unit |
| Liftgate closed | B+ | ||||
| 2AE | BUZ_FEED | Power liftgate (PLG) buzzer | PWM signal Hi 3.0/Lo 1.0 or less |
B+ | Power liftgate (PLG) buzzer |
| Other | 1.0 or less | ||||
| 2AF | BUZ_GND | Power liftgate (PLG) buzzer | Under any condition | 1.0 or less | Power liftgate (PLG) buzzer |
