Bluetooth® pairing
- Pairing of a Bluetooth®-enabled device can be performed.NOTE:
- For the Bluetooth® pairing set up method, refer to the Bluetooth® PAIRING PROCEDURE in the workshop service information.
Clock settings
- The following items can be set using the clock setting.
| Item | Content |
|---|---|
| Manual Time Adjustment | Displays the currently set time. When + is selected, the time/minutes move forward, and when - is selected, the time/minutes move back. AM/PM selection is only possible during 12-hour clock time display. |
| GPS Time Synchronization | Synchronizes to the GPS time.
NOTE:
|
| 24-Hour Clock | Changes the display between 12 and 24-hour clock time. |
| Daylight Saving Time | Enables or disables daylight saving time. |
| Time Zone | Selects the time zone. |

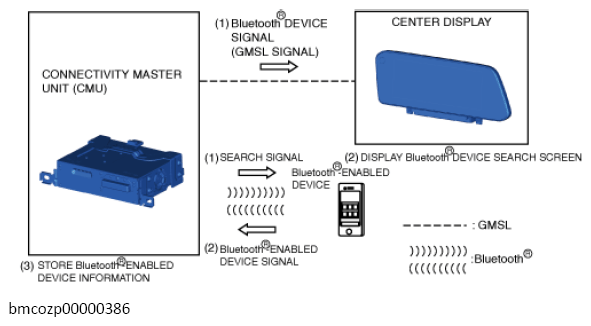

- When the CMU receives the operation signal/detects the switch operation, it transmits a search signal to a Bluetooth® enabled device near the CMU and sends (1) the Bluetooth®-device search screen signal to the center display.
- The Bluetooth®-enabled device near the CMU sends (2) a Bluetooth® device signal to the CMU. In addition, the center display displays (2) the Bluetooth® device search screen.
- The CMU programs (3) the Bluetooth®-enabled device information based on the Bluetooth® device signal.NOTE:
- In the following cases, Bluetooth® pairing is canceled.
- Eight (maximum of 7) Bluetooth® devices have been programmed
- Bluetooth® device signal is not received during period of180 s
- Cancel is selected during Bluetooth® device search screen display
- In the following cases, Bluetooth® pairing is canceled.
