i-ACTIV AWD SYSTEM LOCATION INDEX

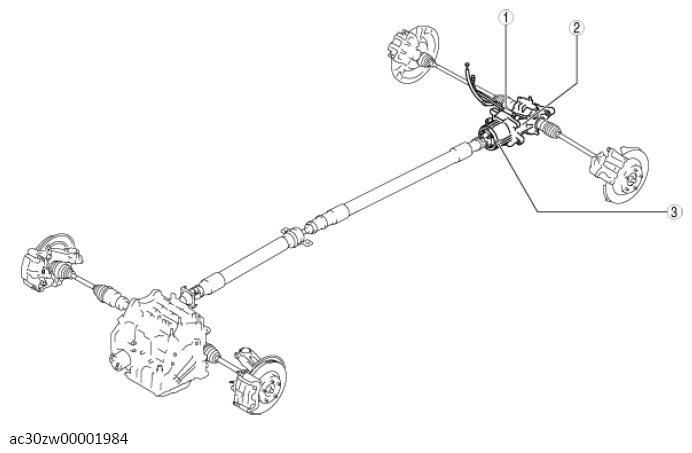

G13558206Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 AWD solenoid
(See AWD SOLENOID INSPECTION .)
2 Differential oil temperature sensor
(See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION .)
(See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
3 Coupling component
(See COUPLING COMPONENT REMOVAL/INSTALLATION (US) .)
(See COUPLING COMPONENT TEMPERATURE SENSOR INSPECTION .)
(See COUPLING COMPONENT CALIBRATION DATA WRITING .)
